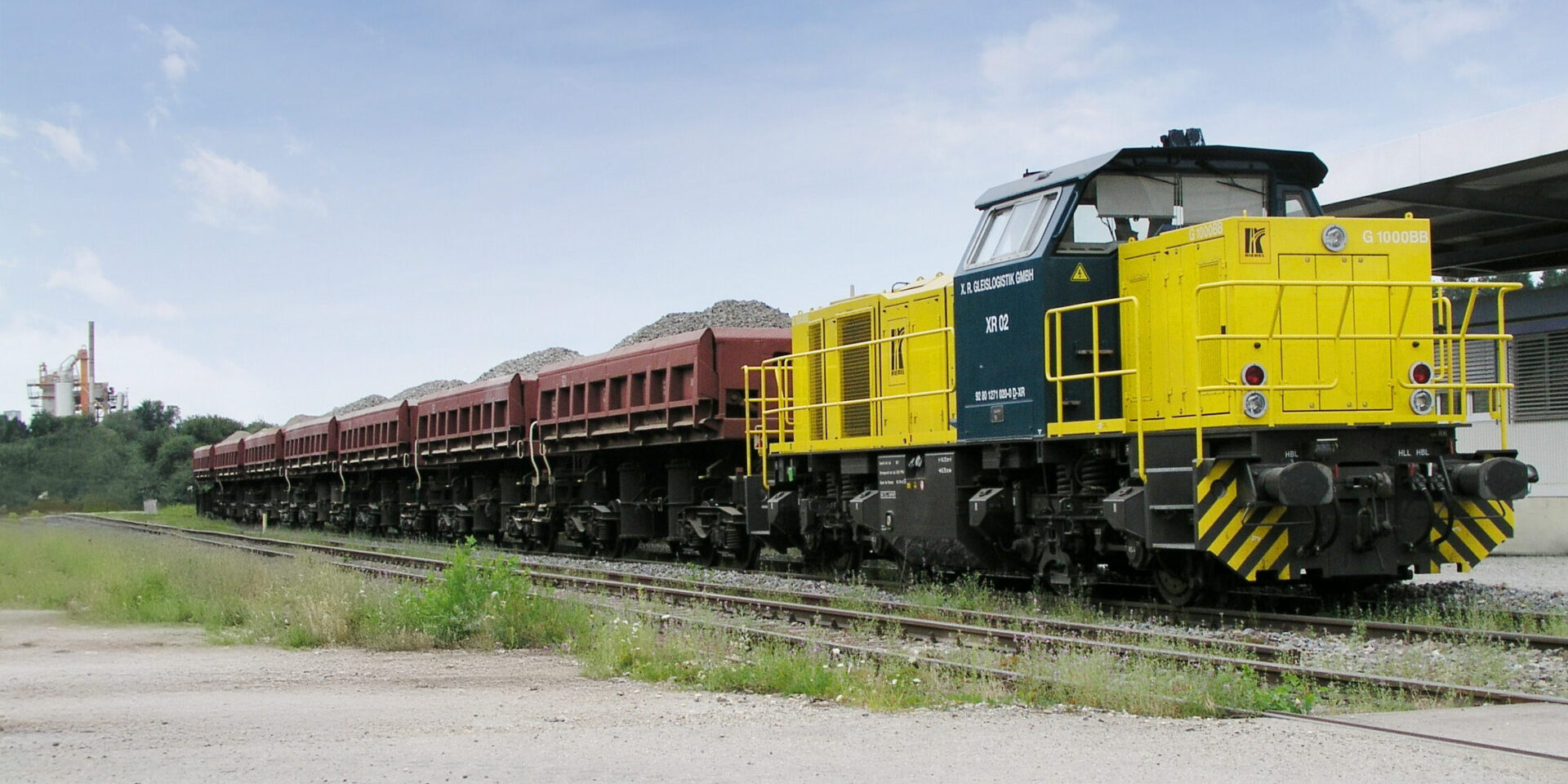

Diesel locomotive G 1000 series
Locomotives, railway wagons – Diesel locomotives
The G 1000 series locomotives are four-axle diesel-hydraulic locomotives for heavy-duty shunting operations and light-duty track service with a two-stage reversing gear unit. They are very well suited for transport movements to supply and remove materials from railway construction sites and for heavy-duty work train deployments.
Functional Characteristics
- Control in multiple unit possible (between each other and with G 1206)
- Strong tractive effort on starting
- Two-stage reversing gear (track gear, shunting gear)
- Low continuous speed, suitable for unloading rails and ballast
- Anti-skid and wheel-slip protection
Technical specifications
| Type of vehicle | diesel hydraulic multi-purpose locomotive |
| Manufacturer | Vossloh Locomotives GmbH, new build |
| Engine | MTU 8V 4000 R41L |
| Soot particle filter | No |
| Output | 1.100 kW |
| Maximum speed | 100 km/h |
| Slowest continuous speed | approx. 8 km/h |
| Service weight | 80 t |
| Height above top of rail | 4.250 mm |
| Axle arrangement | B`B` |
| Average mass per axle | 20 t |
| Transmission | hydrokinetic transmission, Voith L4r4 |
| Brake | wheel disc brake (Knorr), hydrodynamic brake acting on all wheels |
| Brake weights | G/P: 65 t/96 t |
| Length over buffers | 14.130 mm |
| Distance between bogie axle centres | 6.700 mm |
| Bogie pitch | 2.400 mm |
| Safety devices | Automatic safety device, ATW/ATS, train radio telecommunication system (analogue, GSM-R) |
| Operating supplies | diesel fuel: 3,000 l |
