Krupp track-mounted drill and pile-driver I & II
Foundations – Track-mounted pile-drivers

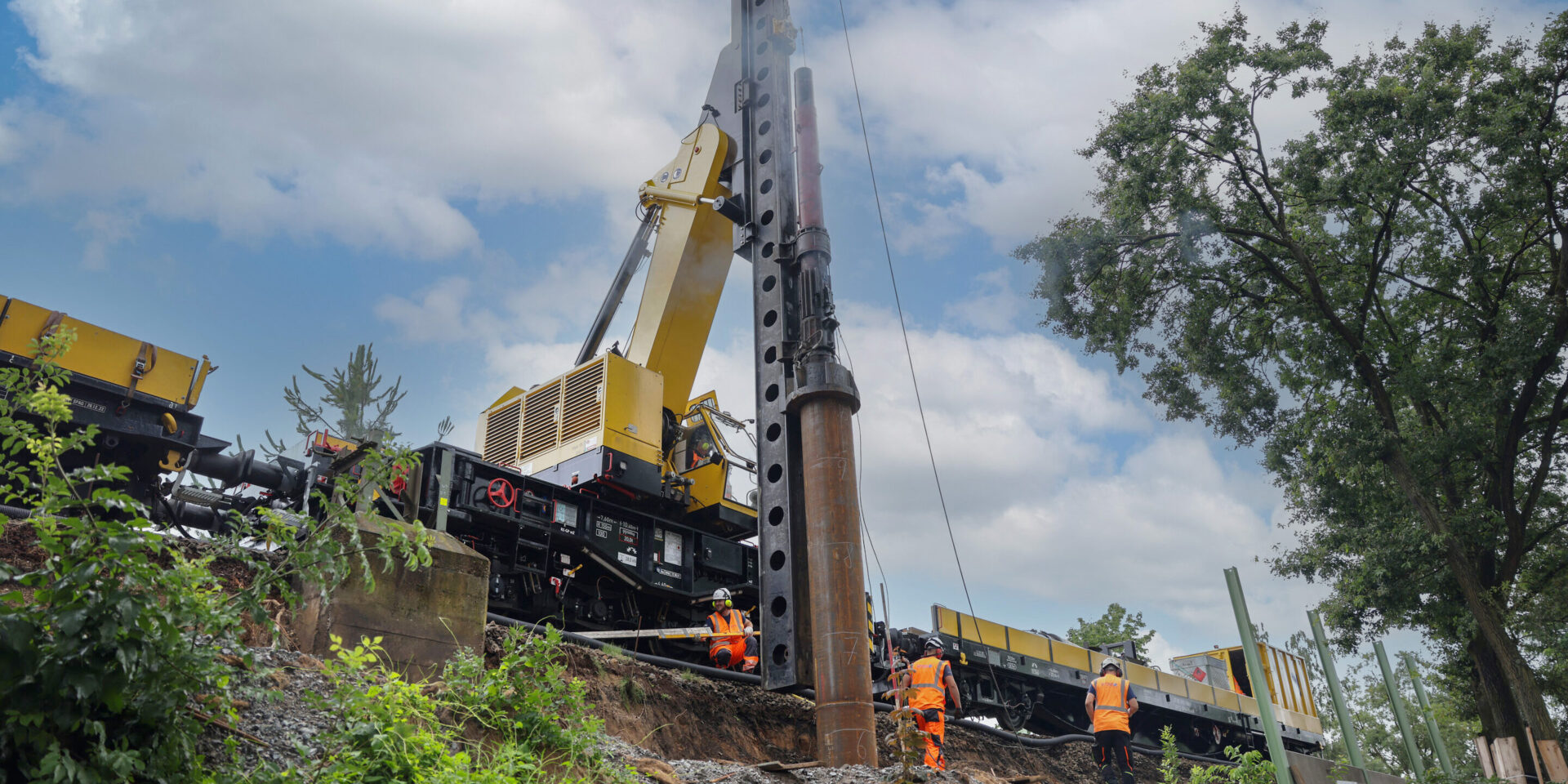

The Krupp track-mounted drill and pile-driver has been especially designed and built for use on Deutsche Bahn construction sites. They can build foundations, without use of the adjacent track, using pile-driving and twist-in drilling methods. An independent traction drive enables working on the construction track without use of a work locomotive. The rams can be used flexibly due to the large load-carrying capacities with long outreach.
Functional Characteristics
- Work runs free of adjacent track and under switched off contact line
- Increased stability thanks to large self-weight and low centre of gravity
- Large diameter pipes can be driven using the existing hydraulics system (without additional unit)
- Fast conversion from pile driving to drilling equipment, compatible with the existing technology
- Piled and drilled foundations for Deutsche Bahn AG masts and signal gantries
- “In-hole” rock drilling and driving large diameter pipes with diameters up to 1,040 mm
- Foundations for temporary bridges
- Making trench or pit supports
- Loading and setting work
- Optional equipping with a diesel pile hammer – D 22 (piston weight 2.2 t) and therefore easy absorption of the heaviest pile driven material
Technical specifications
| Manufacturer | KRUPP/SPITZKE SE |
| Type | track-mounted drill and pile-driver |
| Engine | Perkins 153 kW (215 hp) |
| Maximum speed in train formation | 100 km/h |
| Maximum speed on the construction track | 6 km/h, self-propelled with work train |
| Dead weight incl. traction drive | 98.000 kg |
| Height above top of rail | KRUPP I: 4,575 mm (transport position) |
| KRUPP II: 4,490 mm (transport position) | |
| Outreach | 2.6 m to 7.3 m from the track axis |
| Effective length as pile-driver | with diesel hammer D 22 up to 10 m, with diesel hammer D 15 up to 12 m |
| Effective length while twist drilling | up to 10 m |
| Piling equipment | D 15 or D 22 diesel hammer |
| Pile-driven material | up to 6.5 t at 3 m outreach (with D 22 diesel pile hammer), up to 4 t at 7.30 m outreach |
| Drilling equipment | in-the-hole hammer up to 12, 15 and 17.5 inch drill head for pipes up to 900 mm diameter |
