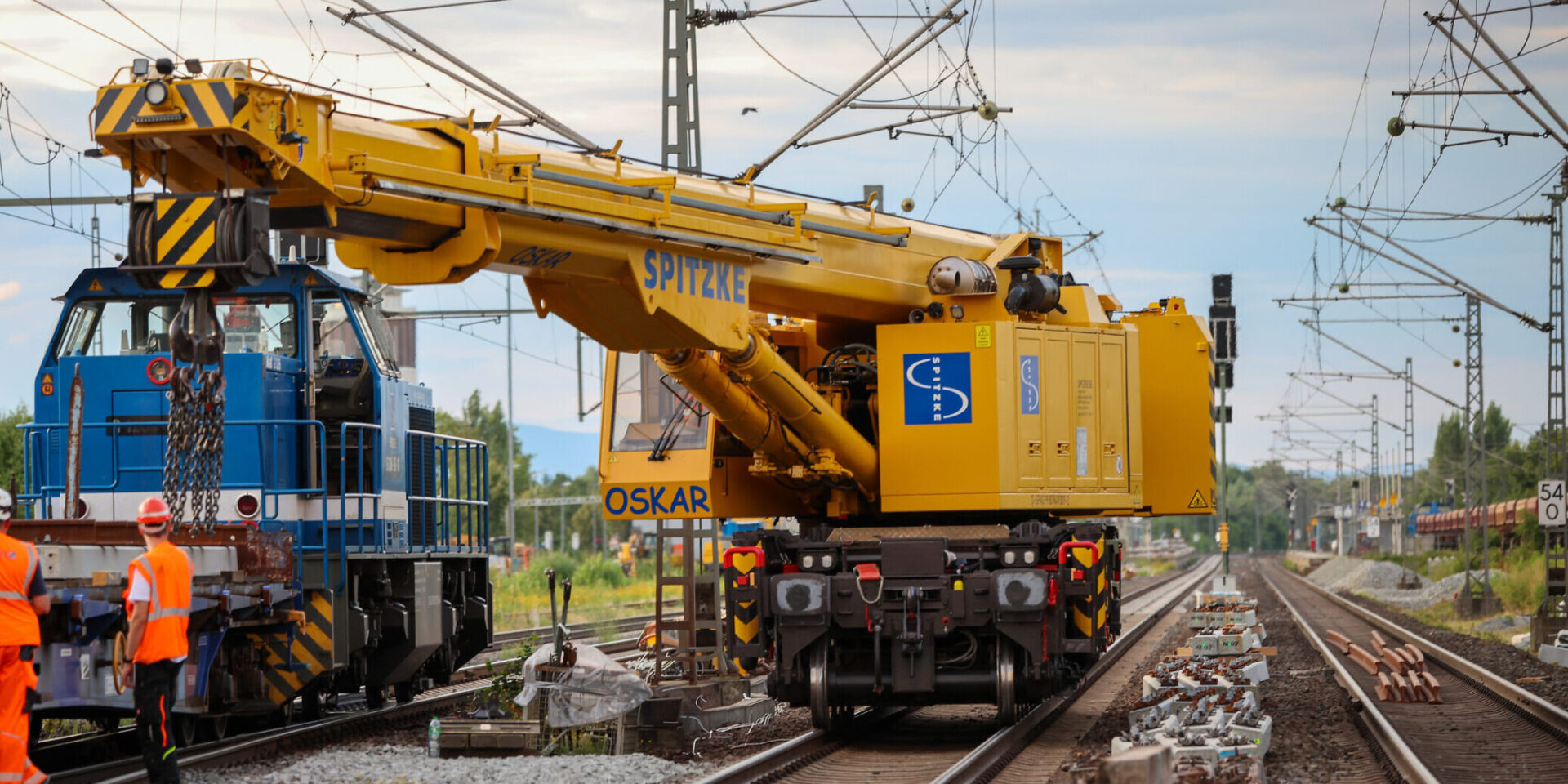

The KRC 810-t is used for the removal and installation of heavy concrete points, prefabricated track panels and emergency bridges, as well as the assembly of engineering structures.
Functional Characteristics
Lifting heavier loads in the camber by compensating for inclination
working with keeping the railway loading gauge clear
automatic overload protection
Technical specifications
Overall weight
125 t
Height above top of rail
4.255 mm ( transport position)
Length over buffers
13.000 mm
Number of axes
8
Engine output
235 kW
Maximum speed in train formation
120 km/h
Maximum self-propelled speed
20 km/h
Performance parameters
At 0 m outreach in front of buffer, with heavy load equipment
125 t
At 2.8 m outreach in front of buffer ± 30°, propped
90 t
At 2.8 m outreach in front of buffer ± 20°, self-supporting
46 t
Smallest negotiable radius of curvature
90 m
Working in canted tracks, maximum
max. 160 mm
Working height beneath contact line
≥ 4,60 m above top of rail
Concrete points of the order of size EW 60-1200-1:18.5 can be renewed in four sections.
