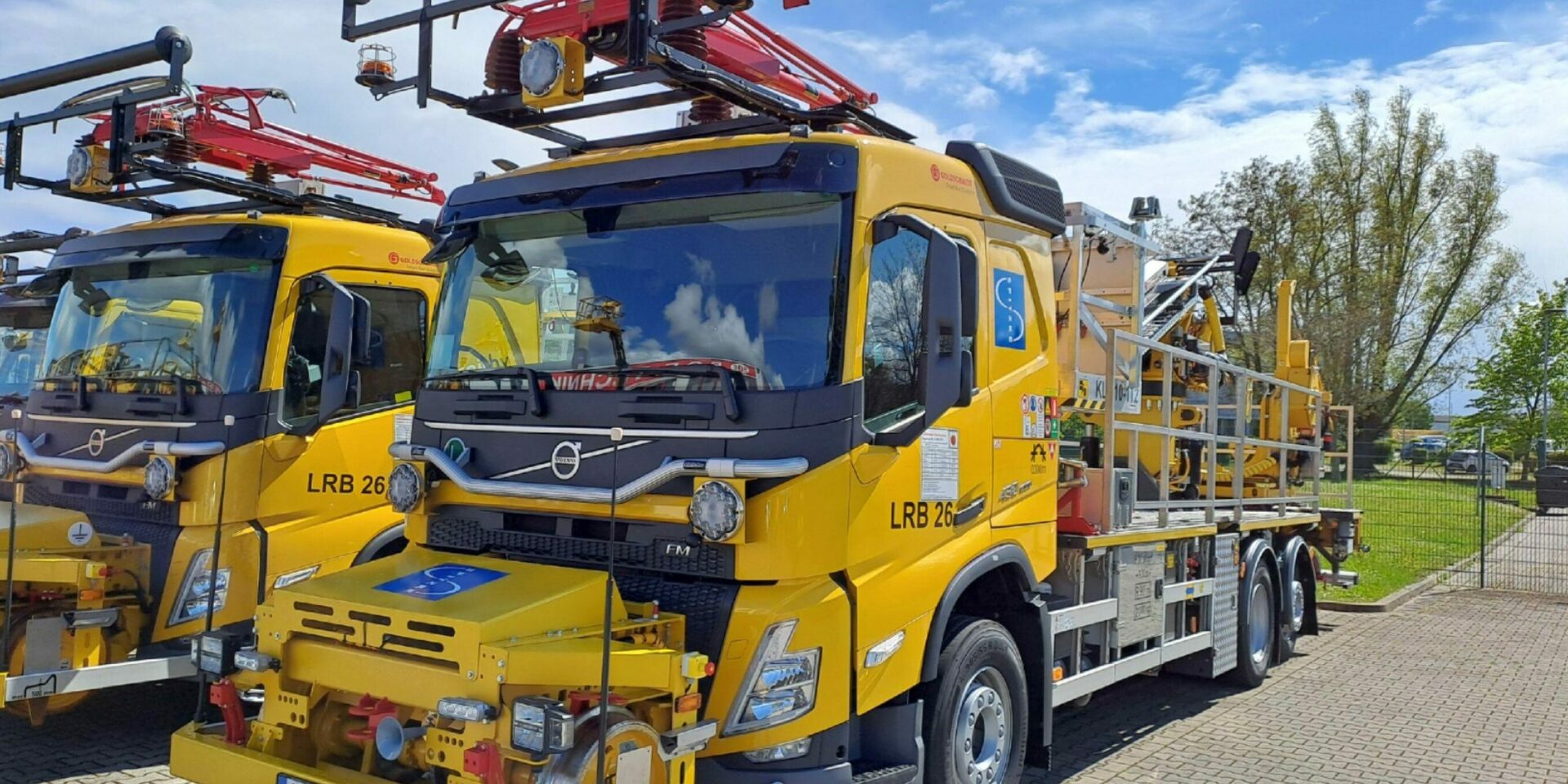

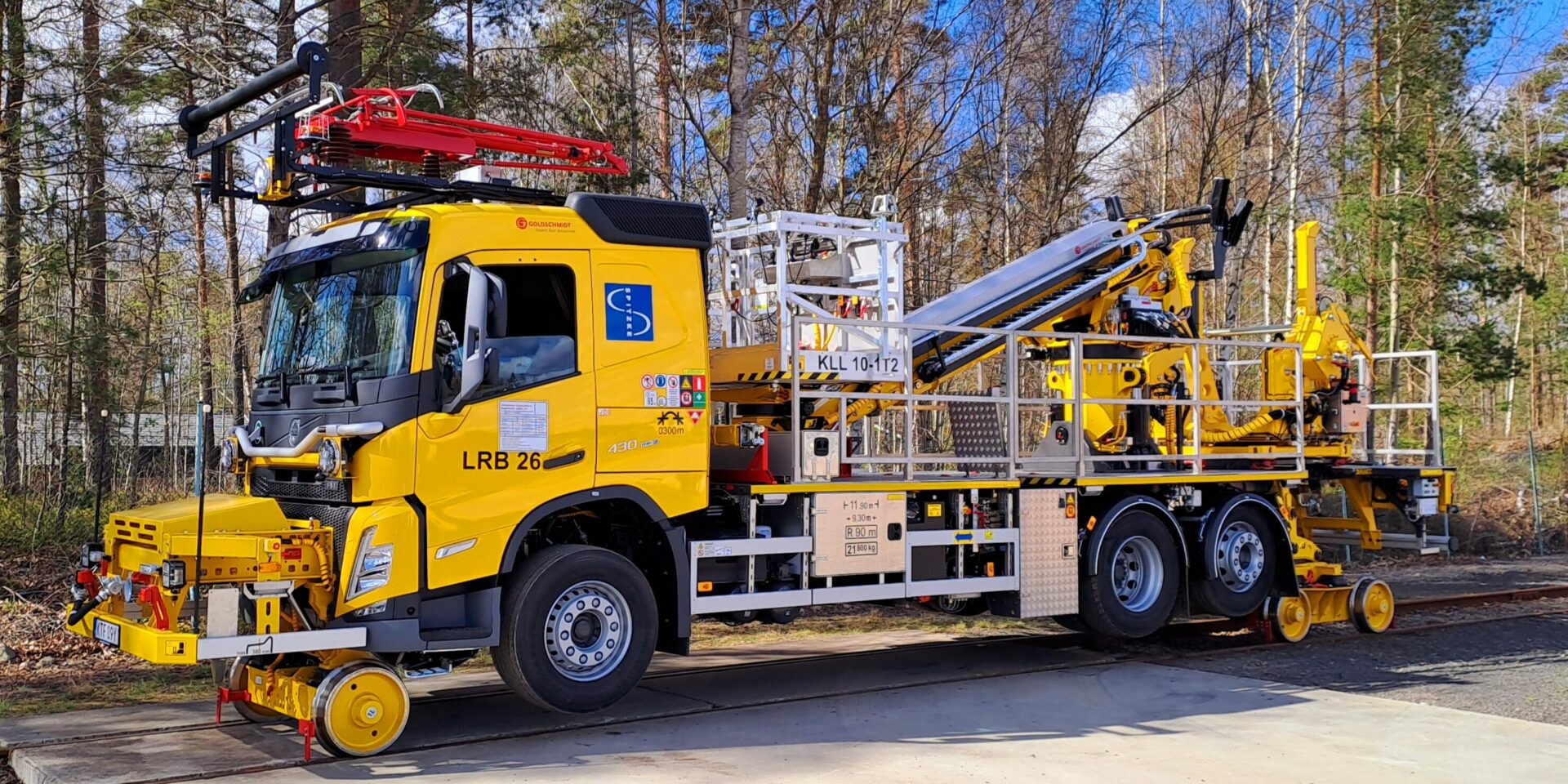

Two-way overhead line assembly vehicle OMF (Goldschmidt SRS)

Contact line installation – Mainline contact lines

Technology Park
Technology Park

The special vehicles are used to install overhead line systems for mainline, regional and industrial railroads in new builds and conversions. The OMF can be used from the track and from the formation level. The special vehicles are also used for the installation of railroad energy systems and for laying cables and lines.

Functional Characteristics

  • Assembly and disassembly of complete overhead line systems
  • Assembly and disassembly of railroad energy systems
  • Maintenance and repair work for existing systems

Technical data chassis

Type Volvo
Speed when driving on the road 90 km/​h
Engine power 430 PS
EU emission standard 6
Total length 11,90 m
Total mass 26 t
Number of axes 3

Working platform

Aerial work platform in telescopic version
Load capacity 500 kg
Working height max. 11,5 m

Drum-on and drum-off unit

Loading volume one cable drum
Loading process Self-loading device, hydraulic
Drum mass 2 t

Rail travel device

Track gauge 1.435 mm
Speed on the rails 25 km/​h
